F1 RAPTOR - FAT

1000 Watt Motor Series - 48V

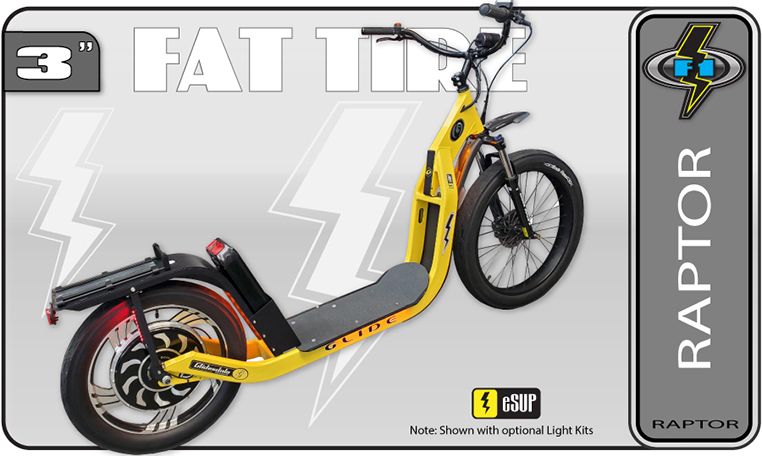

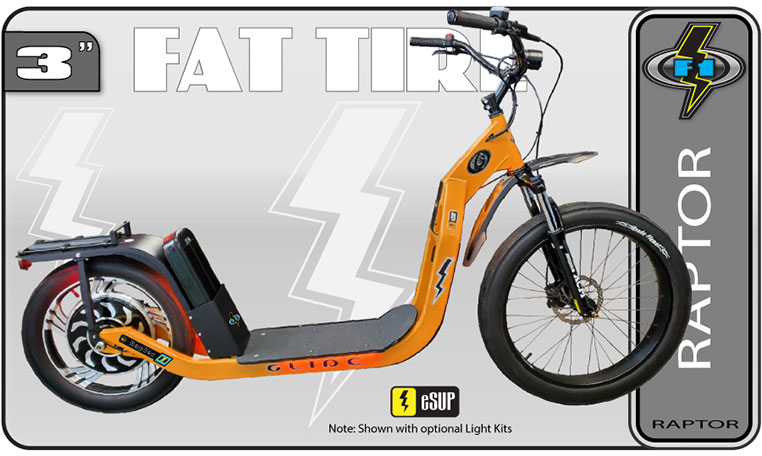

F1 RAPTOR

48V / 1000 Watt - 3" FAT Tire Ride!

$3,950

Model Base Price
  • F1 Raptor1
  • F1 Raptor2
  • F1 Raptor3
  • F1 Raptor4
  • F1 Raptor5
  • F1 Raptor6
  • F1 Raptor7
  • F1 Raptor8

F1 Raptor was added to our line in 2019 as the first 3” FAT tire economical model option. Complete with 1000 Watt motor, the Raptor is quick, agile and ready for the road. The 3" Flame pattern Road Tires grip the road better than most. They also perform very well in agressive turns. The 110+ "plus" type front suspension offers a great ride with strong obstical dampening. Other features include a removable lithium battery (18Ah), integrated MTX ready Cargo Rack and Shimano hydraulic disc brakes!

Raptor comes with all the basics that make for a great medium-width FAT tire ride. The wireless remote makes it convient to turn on and off the machine while maintaining an element of security.

We have a number of great upgrades available for this model. These include: Running Lights Kit (L1), Undercarriage Lights (L2)or Combined Lighting Kit (L3), Upgraded battery (to 20Ah), Computer Display and Custom Frame colors. If you are looking for FAT tire performance at budget price - Raptor is the logical choice.



  • 48V Power System

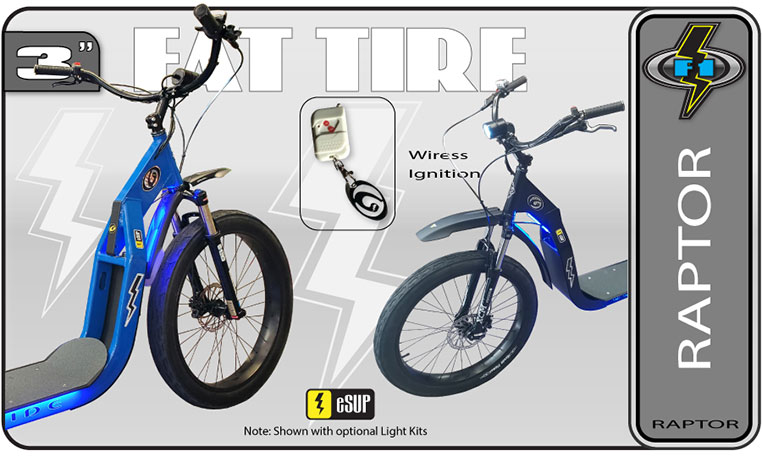

  • Wireless Ignition System
  • Air Ride Front Suspension
  • 3" Street FAT Tires
  • QR Removable Axle
  • Integrated Rear Fender With MTX Cargo Rack
  • MTX Bag or Basket Integration
  • 6061 Aluminum Frame with 600lb + Capacity
  • Heat-Teated Powder Coated Frame
  • Adjustable Handlebar Stem
  • 26" Front End For Forgiving Ride

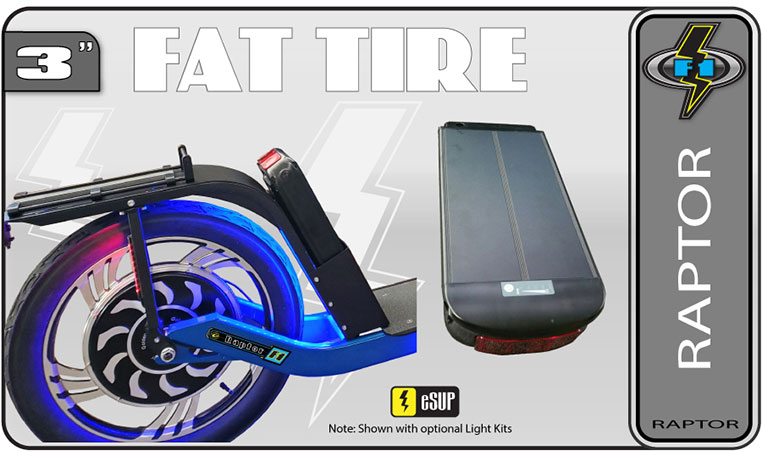

  • Removable Lithium Battery for Counter-Top Charging
  • 3A Quick-Charge Digital Charger
  • Easy-Glide Thumb Throttle
  • Shimano Hydraulic Disc Brakes
  • 203mm Rear Roter for Max Stopping
  • 180mm Front Rotor for Balanced Stopping
  • Non-Skid Oversized Footboard Deck
  • 12V Parallel Wiring for Light System
  • Optional Computer Display
  • Optional 900 Lumen LED Head Light Kit
  • Optional LED Running Lights Kit (L1)
  • Optional LED Undercarriage Lights Kit (L2)
  • Optional Combined Lights Kit (L3)
  • Optional 20Ah Lithium Battery - up to 28 Mile Range
Motor
Volts 48V
Watts 1000W
Type Brushless
Geared No
Max Speed 24 MPH
Controller
Type Digital
Volts / Watts 48V / 1000 Watts
Max Current 25 Amps
Computer Display
BAC-601 Multi-Function - Speed, Power Settings
Wheels / Tires
Wheels 26x3" Front, 20x3" Rear
Tires 26" Front, 20" Rear, 3" Street
Body
Length 87 in.
Width 28 in.
Height 50 in.
Wheelbase 63 in.
Maximum payload 600+ lbs
Curb weight 77.5lbs
Battery
Type Lithium Ion
Charge Capacity 18Ah
Riding Range 22-24 Miles
Time to Charge 3-4 Hours From Empty
LIGHT KITS
Running Lights Kit - L1 Running Lights LRunning Lights FR/RR Kit Installed - $165
Under-carriage Kit - L2 Undercarriage Lights Under-carriage Kits Installed - $159
Full Combo Lights Kit - L3 Full Light Kit FR/RR Running lights + Under-carriage Kits Installed - $299
BATTERY UPGRADE
48V - 18Ah to 20Ah Lithium Lithium - $275
COMPUTER UPGRADE
Computer Display BAC-601 - $135
FRAME COLOR UPGRADE
Custom Frame COlor Custom Frame Paint Powder-Coat / Heat-treat Custom Frame Color - $375


CARGO OPTIONS
    Cargo Flatbed Trailer Flatbed Trailer 125 LB Capacity, $325
    MTX Zipper Trunk Bag EX Topeak Bag EX 2 Versions From $69.95
    MTX Zipper Trunk Bag DXP Topeak Bag DXP 2 Versions From $119.95
    MTX Wire BasketTopeak Wire Basket 1 Model - $44.95
    LIGHT KIT
    Trailer Light Kit Trailer Light Kit Requires L1 or L2 Light Kit pre-Installed - $125
    HELMET
    Kali Unisex Kali Helmet 3 Sizes - $25
    EXTRA BATTERIES
    48V - 18Ah Lithium 48V Battery Upgrade1 Lithium - $775
    48V - 20Ah Lithium 48V Battery Upgrade2 Lithium - $875




    MODEL: F1 RAPTOR
    MOTOR: 48Volt / 1000 Watt
    CONTROLLER: 48V / 25Amp - 40A Max
    WHEEL FRONT: 26" 15/110+ Origin8 Hub
    WHEEL REAR: 20" 15/110+ OrigIn8 Hub
    TIRES: 26x3" / 20x3"- Flame
    LITHIUM BATTERY: 48V / 18Ah
    BATTERY RANGE: 22 - 24 Miles
    SPEED: 20 - 24 MPH
    FRONT SUSPENSION: SR Suntour - 110+ Boost
    DISC BRAKES: Shimano Hydraulic - F/R
    BRAKE ROTORS: 203mm Rear, 180mm Front
    FRAME: 6061 Aluminum
    PAINT: Powder Coated - Heat Treated
    FRAME COLORS: Black, Blue, Orange, Green
    WARRANTY: 1 Year Limited
    OPTIONS: Display, Running / Accent Lights

    Charge Efficiency Rating

    • Range Low: 22
    • Range High: 24

    Actual range will vary with rider weight, terrain, speed, rider driving habits and wind conditions.

    BUY NOW

    COLORS:
    redirects to PayPal

    Prefer to pay by check? Email us: sales@glidecycles.com

    FINANCING OPTION

    For as little as $93 per month!

    Financing through Variant Fianancial, Inc.
    Follow Promts to "Accept"
